DCC94 Ruby Series 6 Function Pro DCC Decoder 8 Pin

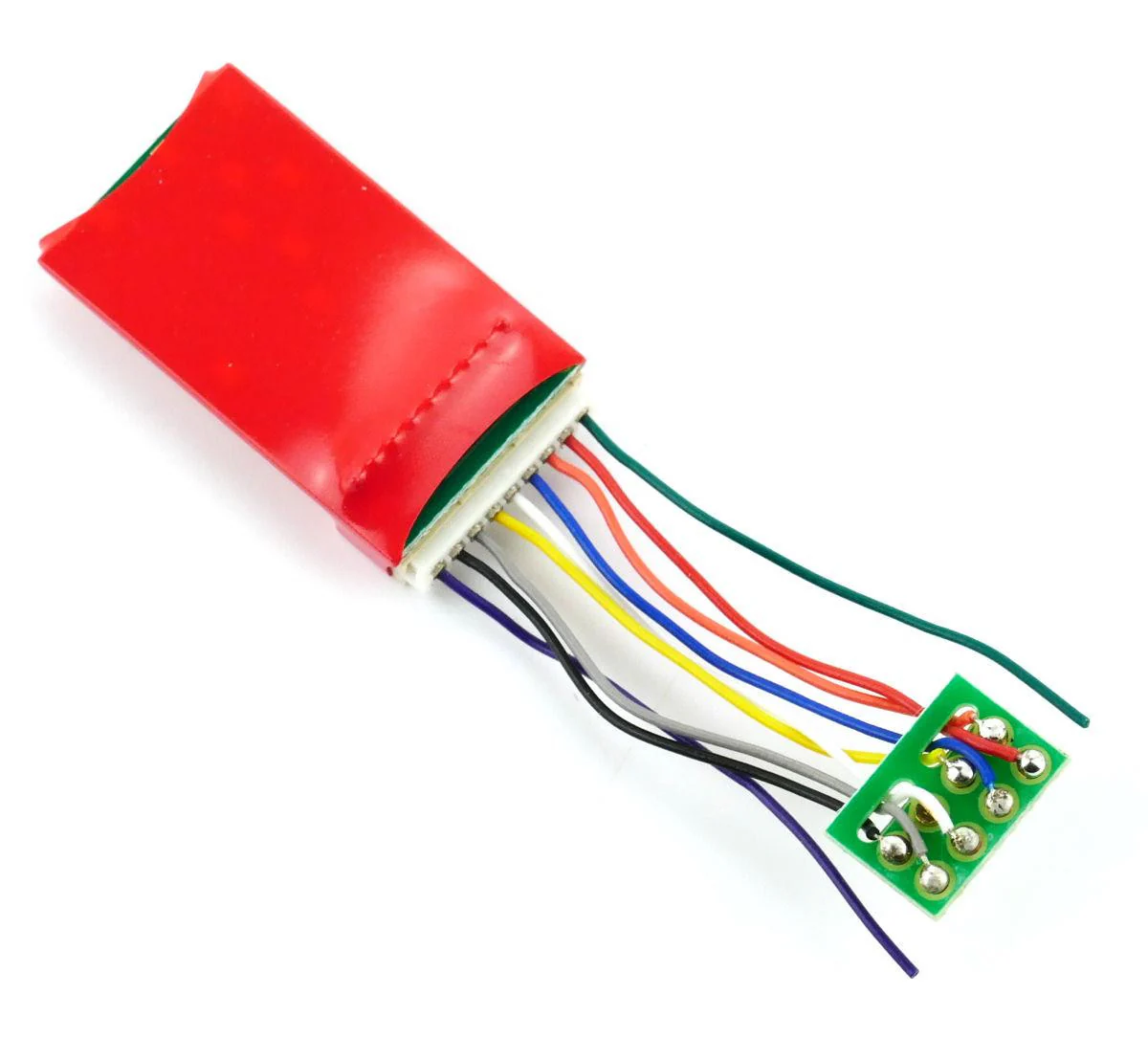

The DCC94 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold seperately), This helps keep the locomotive moving in dirty or dead track sections.
FEATURES
- 2 Digit and 4 Digit Addressing
- 14, 28 or 128 Speed Steps
- Smooth Operation
- Constant Brightness Lighting
- Direct Mode Programming
- Motor Isolation Protection
- Advanced Consisting
- Socket to Add PowerPal
SPECIFICATIONS
- LENGTH 27mm
- WIDTH 17mm
- THICKNESS 7mm
- HARNESS LENGTH 25mm
MEASUREMENTS
- NO. OF PINS 8
- NO. OF FUNCTIONS 6
- SPEED STEPS 14, 28 or 128
- CURRENT RATING 0.5A
- MOTOR CURRENT RATING 1.5A - 2.0A Max
Original: $41.32
-70%$41.32
$12.40More Images
DCC94 Ruby Series 6 Function Pro DCC Decoder 8 Pin
The DCC94 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold seperately), This helps keep the locomotive moving in dirty or dead track sections.
FEATURES
- 2 Digit and 4 Digit Addressing
- 14, 28 or 128 Speed Steps
- Smooth Operation
- Constant Brightness Lighting
- Direct Mode Programming
- Motor Isolation Protection
- Advanced Consisting
- Socket to Add PowerPal
SPECIFICATIONS
- LENGTH 27mm
- WIDTH 17mm
- THICKNESS 7mm
- HARNESS LENGTH 25mm
MEASUREMENTS
- NO. OF PINS 8
- NO. OF FUNCTIONS 6
- SPEED STEPS 14, 28 or 128
- CURRENT RATING 0.5A
- MOTOR CURRENT RATING 1.5A - 2.0A Max
